Offshore Quick Couplings

CSP is a proud supplier of Walther quick connect Couplings and coupling systems for the offshore technology industry. Walther has been developing and producing mono-couplings, multi-couplings, and docking systems used for liquids, gases, steam or electrical power to be transferred and disconnected safely. With over 30 years of experience, Walther has been a trusted name in the offshore industry. Our couplings are available in a wide range of materials and designed to withstand harsh conditions. Walther provides various types of couplings for the offshore technology industry including:

• Mono-couplings
• ROV single couplings
• Stabplates

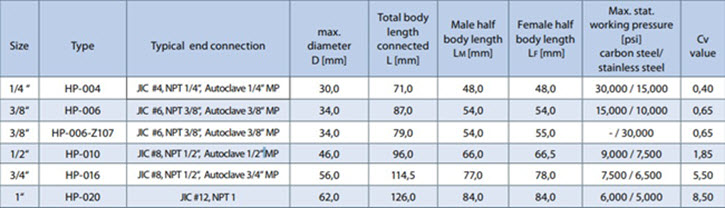

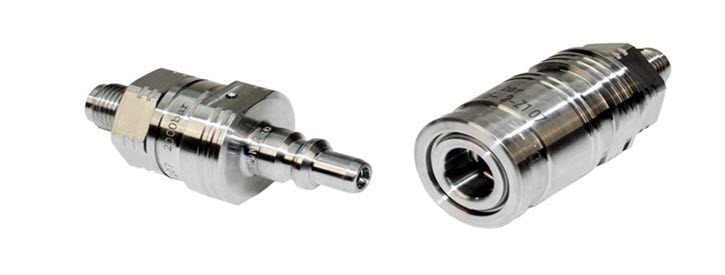

Mono Couplings:

View Offshore Brochure

Mono Couplings Characteristics:

• Rugged and reliable design
• Wide choice of end connections
• Various material versions available
• Both sides are self-sealing

Optional Features:

• Additional safety lock by axial safety sleeve (50 g shock proof)
• Non-interchangeable versions by keying rings
• Pressure venting valves
• Dirt- or pressure training protection caps

ROV Single Couplings Characteristics:

• Manipulator make and break, no special tooling required
• Connects under full working pressure. Make up torque only 40 Nm.
• Max. working pressure 15,000 psi
• Sizes 6, 10 and 16 mm
• Cv value 0,56- 5,34
• All primary seals and moving components on retrievable half
• Metallic primary seal with resilient back up
• Metal seal good for +100 connection cycles
• Max. water depth 3000 m

Optional Features:

• ROV interface as T-bar, D-handle or other profile
• 2 non-interchangeable versions by mechanical profile
• Supplied as complete tested system with jumper hose
• 15,000 psi working pressure versions 87-G08
• Versions for steel hoses available

Requirements for Offshore Technology

Long service life, extreme corrosion resistance and simple handling under adverse conditions – these are just some of the demands made on quick coupling systems by the offshore industry. Furthermore, the design of couplings for underwater application must be suitable for handling by divers or ROV manipulators. Click here to learn more about offshore & subsea technology.

Walther's Solutions

Our quick coupling systems allow for fast connection and separation of fluid, gas and electrical lines on drilling platforms and subsea. Special sealing systems ensure leak-free operation in order to protect the environment. Power assisted locking systems allow for convenient handling of couplings with large nominal bores. Our couplings have proven their worth in remote-controlled systems at great ocean depths. Special sealing technologies and materials achieve a service life of 25 to 30 years.
