Manually Operated Couplings with Standard Valves
Need A Quote?
Manually Operated Couplings with Standard Valves
CSP supplies standard Walther couplings in a variety of sizes made for a number of applications. These manually operated couplings can be used in low, medium and high pressure applications. Each series is manufactured for a specific use to ensure that the coupling used is the best fit for the job. Whether you're looking for the Walther Coupling model HP-006 or LP-006, CSP has the manual Walther couplings you need.
| Manually Operated Couplings with Standard Valves | |||||
|---|---|---|---|---|---|
| Series | End fitting size range | Working Pressure psi | Cv | Features | Click on picture to enlarge |

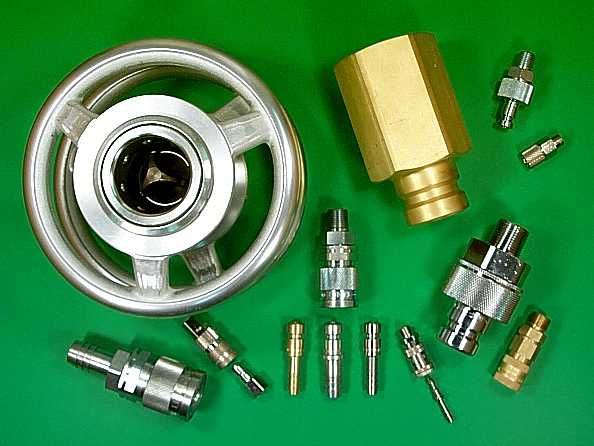

| LP SeriesQuote » | 1/8" - 2" | 435 - 2,900 | 0.17 - 68 | General purpose Low Pressure coupling. Also available in 2 & 3 branch versions. Includes 06, 07, LV & SP sub-series. | (click photo below) |
| 06 SeriesQuote » | 1/8" | 1,450 | 0.17 | Very small, male side not valved. Part of LP Series |  |
| 07 Series Quote » | 1/8" | 2,900 | 0.14 | One hand operation. Part of LP Series | |
| LV SeriesQuote » | 1/8" - 1/4" | 860 | 0.3 | Extended body . Part of LP series | (click photo above) |
| SP SeriesQuote » | 1/4" - 1/2" | 1,450 | 0.73 | High pressure version of LP-006. LP Series. May be marked with "NW6" on 6mm version. | |

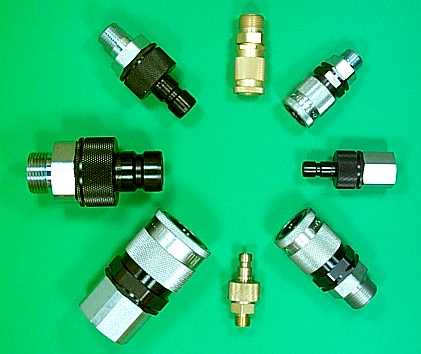

| MD/SG SeriesQuote » | 1/4" - 2-1/2" | 1,450 - 3,625 | 0.73 - 68 | General purpose Medium Pressure couplings. Also available for plate mounting & sub-sea use. |  |

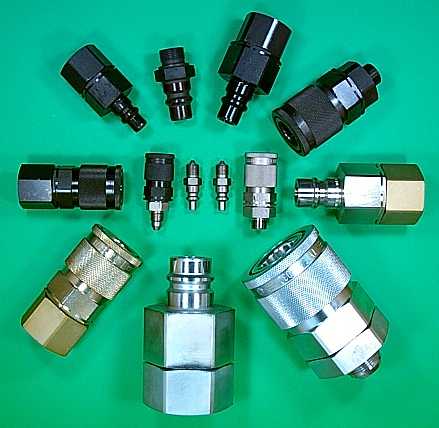

| HP SeriesQuote » | 1/8" - 2-1/2" | 2,900 - 40,000 | 0.1 - 82 | General purpose High Pressure couplings. Also for plate mounting, esp. for subsea use. Very robust, esp. with RV option. |  |

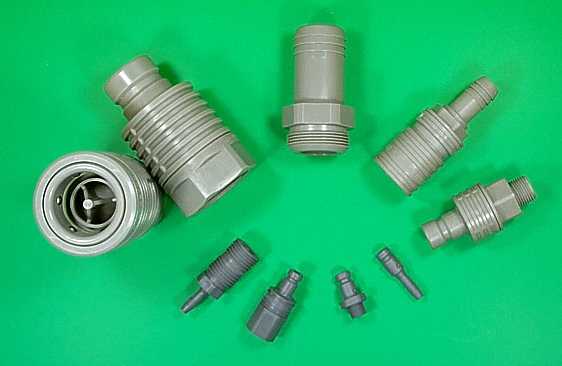

| KL SeriesQuote » | 1/4" - 2" | 145 - 170 | 0.73 - 30 | Popular low cost, corrosion resistant, plastic couplings. Mates w/LP couplings. |  |

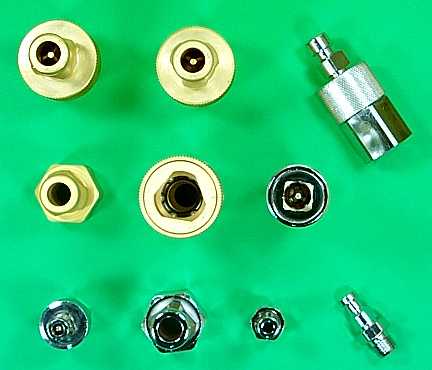

| UF SeriesQuote » | 1/4" - 2" | 435 - 580 | 0.73 - 29 | Non-round, non-interchangeable shapes. |  |

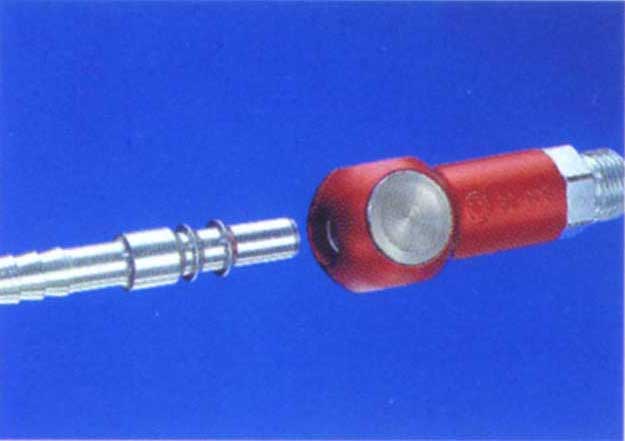

| 32 SeriesQuote » | 1/4" - 1/2" | 20 - 290 | 0.82- 2.5 | Bleed-off air line couplings. Bleeds pressure from air lines on disconnection. |  |
| 904 SeriesQuote » | 2mm - 6mm tube | 10- 145 | thru | Miniature, multi-tube fluidic connectors. | -- |

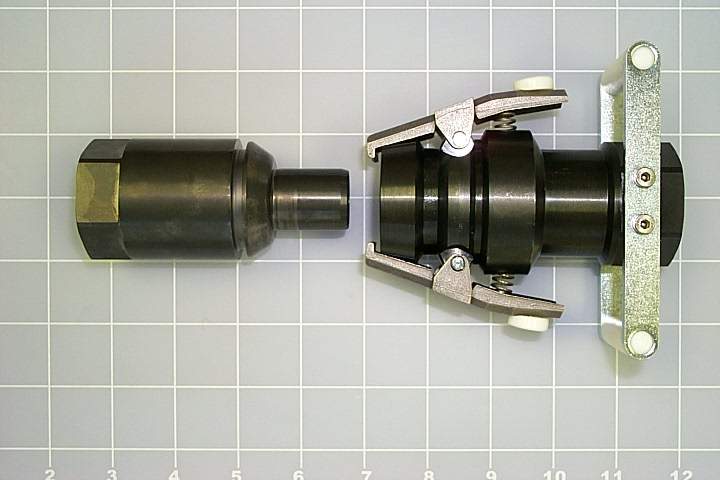

| 11 SeriesQuote » | 3/4" & 1" | 360 - 650 | -- | Designed specifically for heat transfer oils. 590ºF continuous. Jam-free locking mechanism. |  |

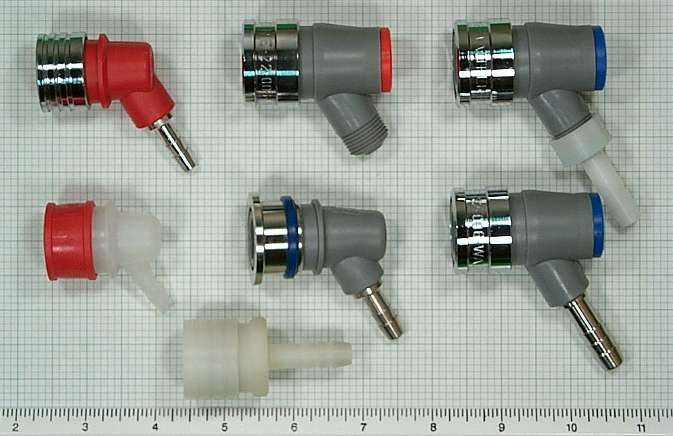

| 22 SeriesQuote » | various | various | various | Couplings primarily for medicalapplications: kidney dialysis, body fluids, diagnostic machines etc. |  |

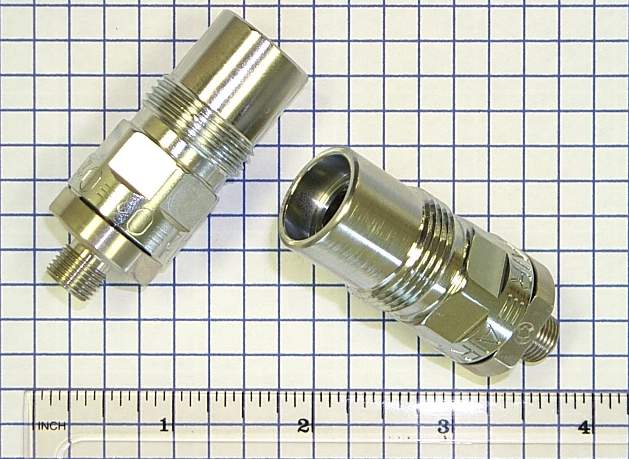

| LD SeriesQuote » | various | various | various | Designed for a variety of medical gases. Conforming to European Standard EN 739. |  |

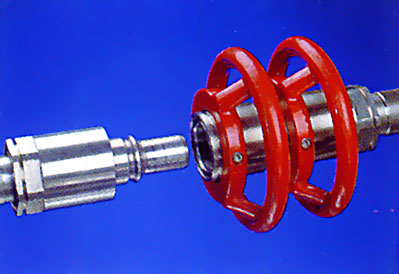

| TE SeriesQuote » | 1/2" - 2' | 435 - 775 | -- | All PTFE seals. For cryogenic temp. to 480°F, aggressive & mixed fluids. |  |

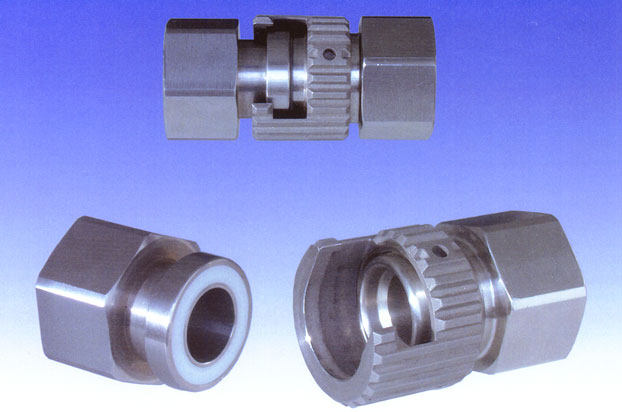

| EH SeriesQuote » | 1-1/4" - 4" | 230 - 725 | -- | EZ connect, EZ flow for pastes, powders, food, etc. Zero insertion length. Non-valved. |  |

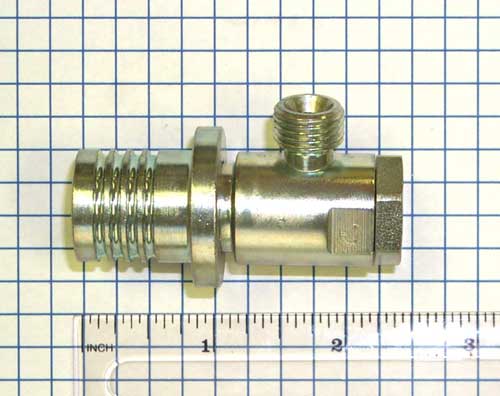

| 31 SeriesQuote » | -- | -- | -- | Gasoline couplings to mate with SAE J2044 nipples. Primarily for auto engine testing. |  |
| SH SeriesQuote » | 3/8" - 3/4" | 10,000 | 1.2 | Screw-together, high pressure for diver operation. Metal primary seal for subsea use. | -- |
