Industries Served

Your working environment:
There are maximum material and processing requirements for reliable, hygienic coupling in a sterile environment during the Sterilisation of foodstuffs, but also during various fermentation processes.

The requirements:
Suitable for liquid, pasty and dusty / granular substances

Our solutions:

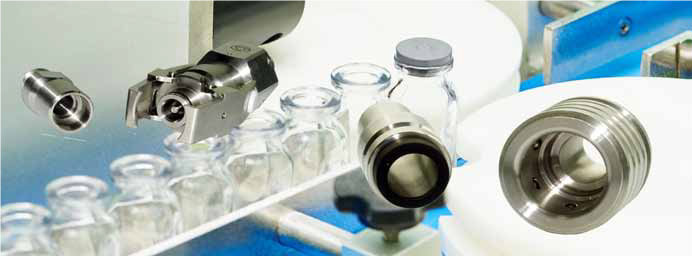

• Type 01- 015 / 018
Piggable thru-type stainless steel coupling, nominal size 18 mm, max. 8.5 bar, surface quality of parts in contact with substances Ra ≤ 0.8 μm, SIP- / CIP-capable Special features: The housing seal is a moulded seal on the nipple to create a connection as gap-free and as dead-space-free as possible when coupled, designed to be replaced and easily when worn designed to be replaced
• Type 15-012
Stainless steel coupling with catch locking, nominal sizes 12 mm, virtually no dead space as springs are outside the flow of substances, surface quality of parts in contact with substances RA ≤ 0.8 μm, SIP capable Special features: Thru-type coupling with valve-opening tappet very easy to clean due to use of a handle lock and easy to operate thanks to automatic lock (single-hand operation)
