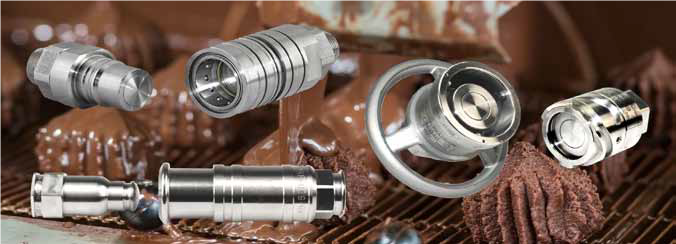

Clean break couplings
For additional requirements with particularly aggressive, lubricating and non-lubricating substances, even at higher temperatures, according to EU 1935 / 2004 -2023:
• Spill-free, quick, easy and safe connection and separation, even for lines containing foodstuffs
• No athmosphere inclusion in the line system during connecting
• Can be connected under residual pressure on one side /both sides
• Large nominal sizes still easy to handle due to additional ring grips
• Easy cleaning (SIP-capable)
• High flow-rate
• Manufactured in accordance with DIN 10204 3.1

Solutions, ideally matched to your application:
• BF series,
nominal sizes 5 mm to 50 mm, up to max. 64 bar/ 928 psi, for the highest requirements with regards to preventing atmosphere inclusion, specially developed for highlycomplex demands in laboratory and production work
• CN series,
nominal sizes 25 mm to 100 m, up to max. 25 bar / 362 psi, optimal flow performance for loading stations and process plants
• CT series,
nominal sizes 3 mm to 19 mm, up to max. 64 bar / 928 psi, suitable for all applications which require minimal leakage, combined with fool-proof handling and high flow
• Type 40-030,
nominal size 30 mm, up to max. 6 bar / 87 psi, other sizes on request. For highest demands on process cleanliness and hygiene of the products during the connection of lines
