Ring Valves, Grips & Coupling Adapter Options

Need A Quote?

Ring Valves

Ring Valves - Designated in the part number by -RV . Recommended for high pulsating pressures and harsh working environments. Cannot be coupled with standard valves.

(Click the images below to see larger pictures.)

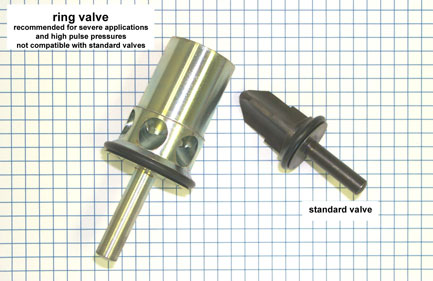

View of ring valve (left) and standard valve (right)

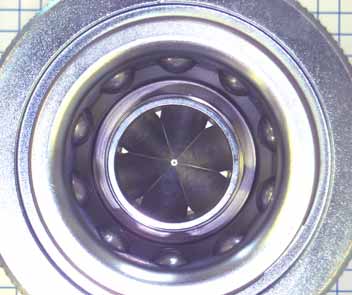

View of ring valve inside female coupling

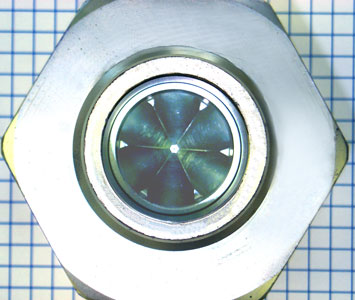

View of ring valve inside male adapter



Axial Safety Locking

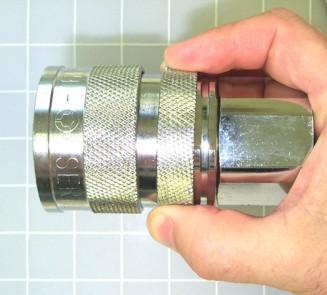

Axial Safety Locking - Designated in the part number by -SI . Most couplings can be supplied with an additional axial safety locking feature. Disconnection can only be performed when both locking sleeve and locking ring are pulled back against spring force and turned against each other by 90 degrees. Shown below, the locking ring is being retracted into the locking position.





Ring Grips

Ring Grips - Designated in the part number by -GG . Available for many of the larger bore couplings, ring grips will aid in the disconnect of the coupling halves when used in applications with limited access, high operating temperatures, etc. Standard material is aluminum. Other materials available, please inquire.

Locking Aid

Locking Aid - Designated in the part number by -VH . For easier operation, the locking sleeve on the coupling body can be secured in the retracted position. When mating the components, the locking sleeve is released and springs forward into the locking position.
